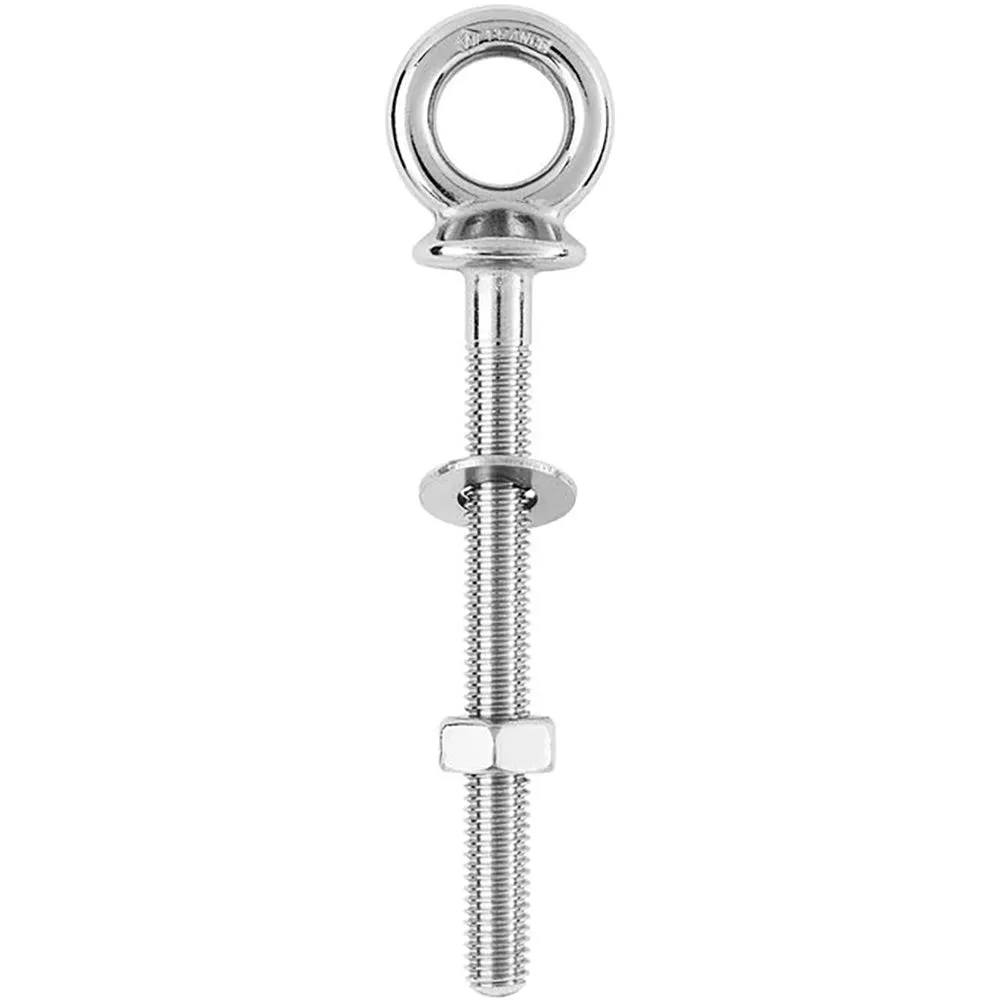

Eye Bolt - M10 x 150mm - Length 100mm
Features:
- A complete range of single piece forged products for fastenings applications
- Outstanding working and breaking loads
- Available in different sizes
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 5950 / (kg) 2700
- Weight: (lb) 0.216 / (g) 98

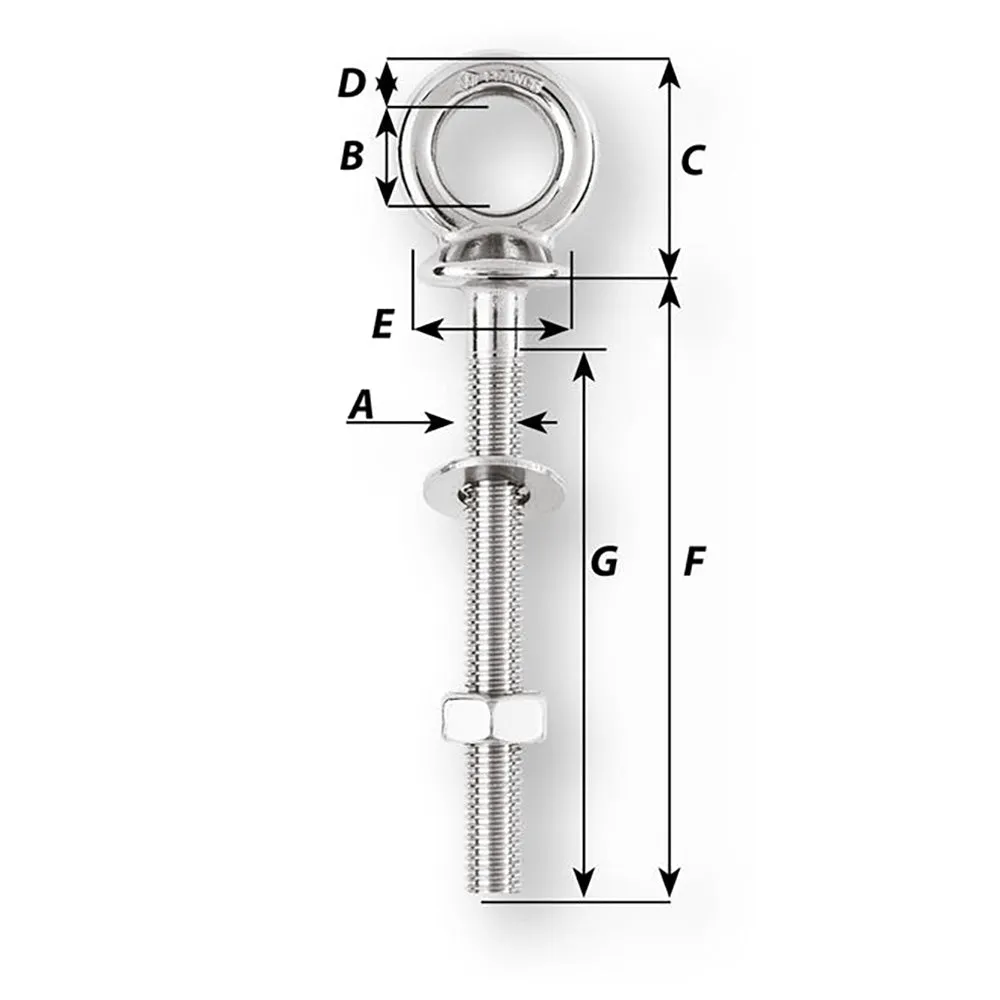

Dimensions:
- A: (mm) M10 x 150
- B: (inch) 5/8" / (mm) 16
- C: (inch) 1 27/64" / (mm) 36
- D: (inch) 9/32" / (mm) 7
- E: (inch) 63/64" / (mm) 25
- F: (inch) 3 15/16" / (mm) 100
- G: (inch) 3 15/32" / (mm) 88
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
